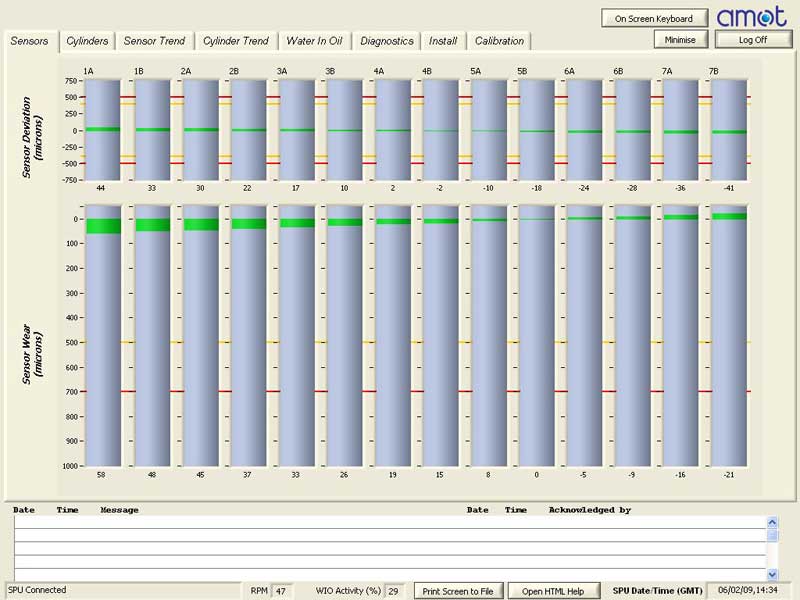

● This screen shows a typical bar chart display, showing the current status of all sensor outputs.
It is on this type of screen warning and alarm indications would be displayed, using colours to show conditions (green, yellow, red).
Normal Running

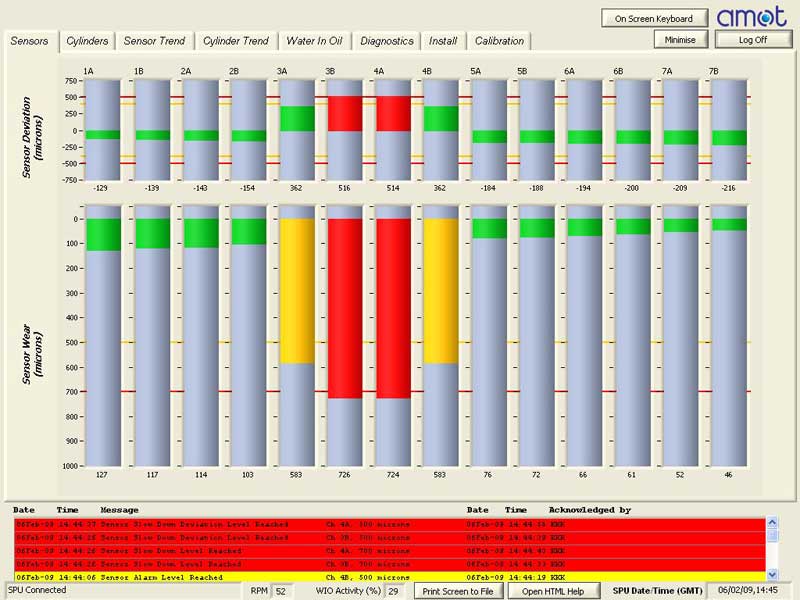

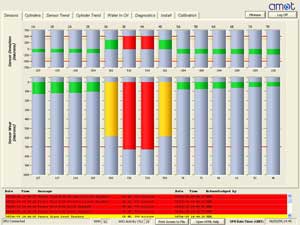

● This screen shows the display when a bearing is starting to show signs of wear, the sensors displayed in yellow clearly show which bearings are wearing. The sensors in red indicate a slowdown situation.
Bearing Wear Warning

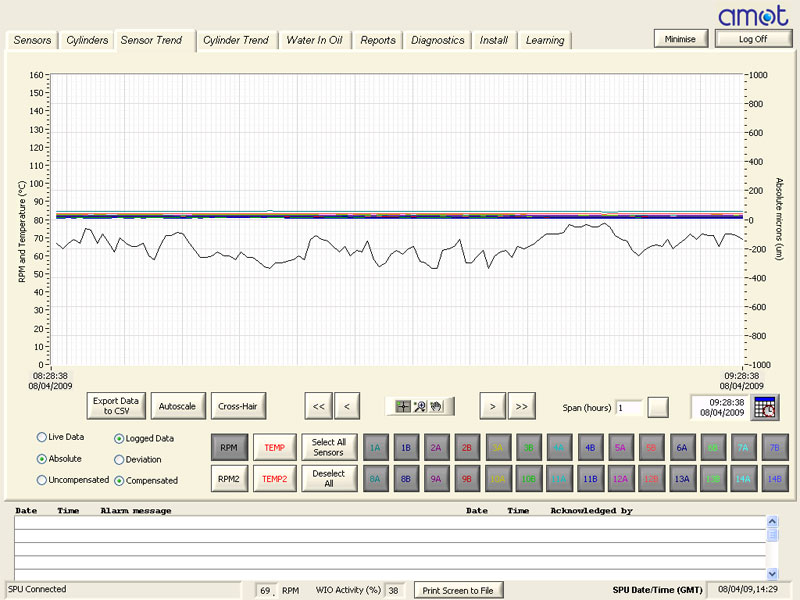

● Trend screens can be used to review the bearing wear data. Many years of data may be reviewed on a single screen, with up to all bearings displayed simultaneously.
Sensor trending

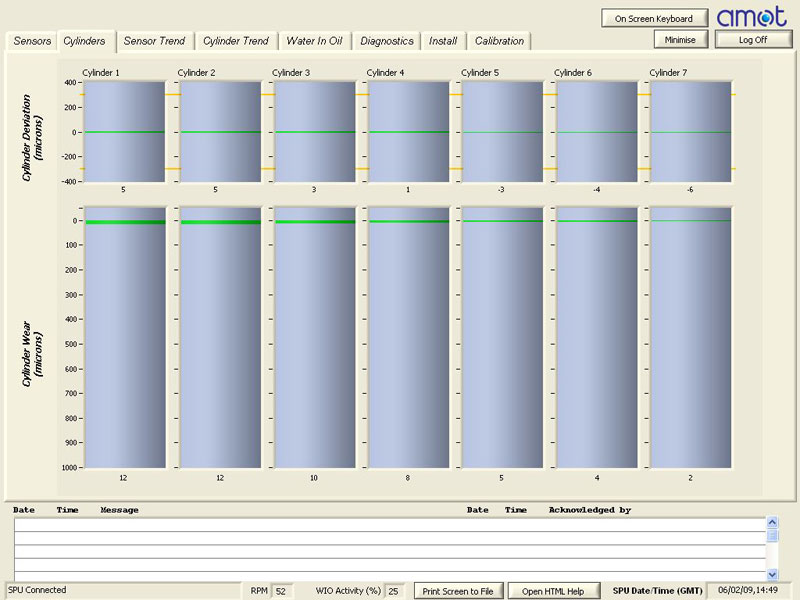

● One of the new XTS-W+ features is cylinder monitoring which removes engine counter phase variations induced by thrust , longitudinal shear or hull deformation, cylinders can also be viewed just like sensors in a trend.
Bearing Wear Warning Trend

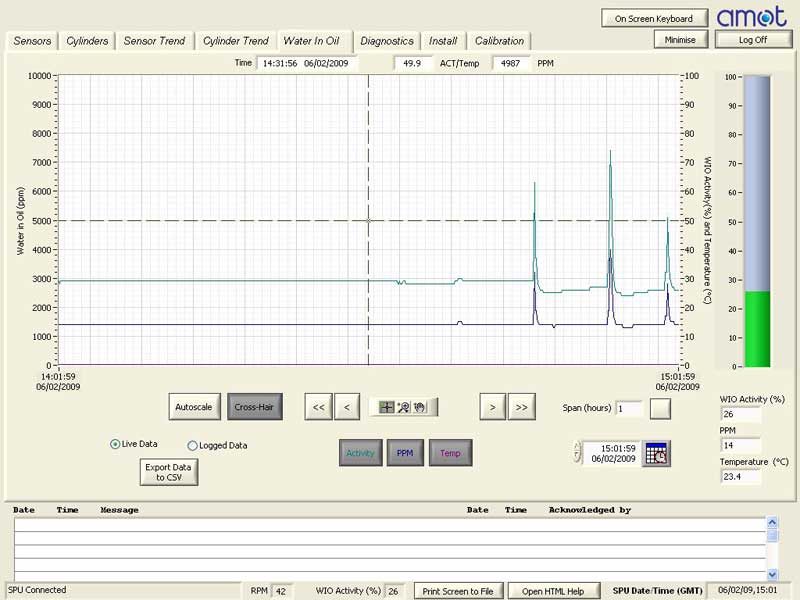

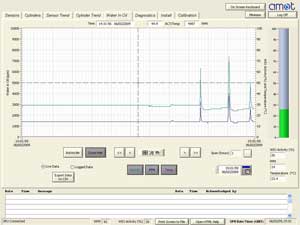

● Water in oil monitoring (WIO) is integrated with dual alarms and trending
